There are eight main types of electrical conduits: RMC, IMC, EMT, FMC, LFMC, PVC, RNC, and ENT. Each type offers unique features, from rigidity to flexibility, designed for various environments and applications.
Electrical conduits protect and route wiring in homes, businesses, and industrial spaces. Rigid types like RMC are ideal for outdoor use, while flexible options like FMC suit tight spaces. PVC and RNC work best in wet or underground settings.
This guide will look at the eight electrical conduits and their common uses.
Let’s jump straight in.
1. Rigid Metal Conduit (RMC)
RMC is a heavy-duty conduit made of steel or aluminum, offering maximum protection for electrical wiring. It’s commonly used in outdoor or industrial environments where durability is critical. Its thick walls provide superior defense against physical damage and harsh weather conditions.
- Ideal for outdoor and industrial applications.
- Offers excellent protection against impact and corrosion.
- Complies with strict safety standards for high-risk areas.
RMC is ideal for projects requiring maximum durability and safety. Its robust design makes it a reliable choice for heavy-duty installations.
Paid RMC with high-quality conduit bushings to protect cables at entry and exit points. This provides optimal protection against wear and tear and ensures smooth transitions.
2. Intermediate Metal Conduit (IMC)
IMC is lighter and thinner than RMC but still provides strong protection for electrical wiring. It’s often used in areas where strength is needed without the weight or bulk of RMC. Its zinc coating offers resistance to corrosion, making it suitable for both indoor and outdoor applications.
IMC is a cost-effective alternative to RMC for large-scale projects. It’s easier to handle during installation, reducing labor time while maintaining compliance with safety codes. This makes IMC a popular choice for commercial and industrial use.

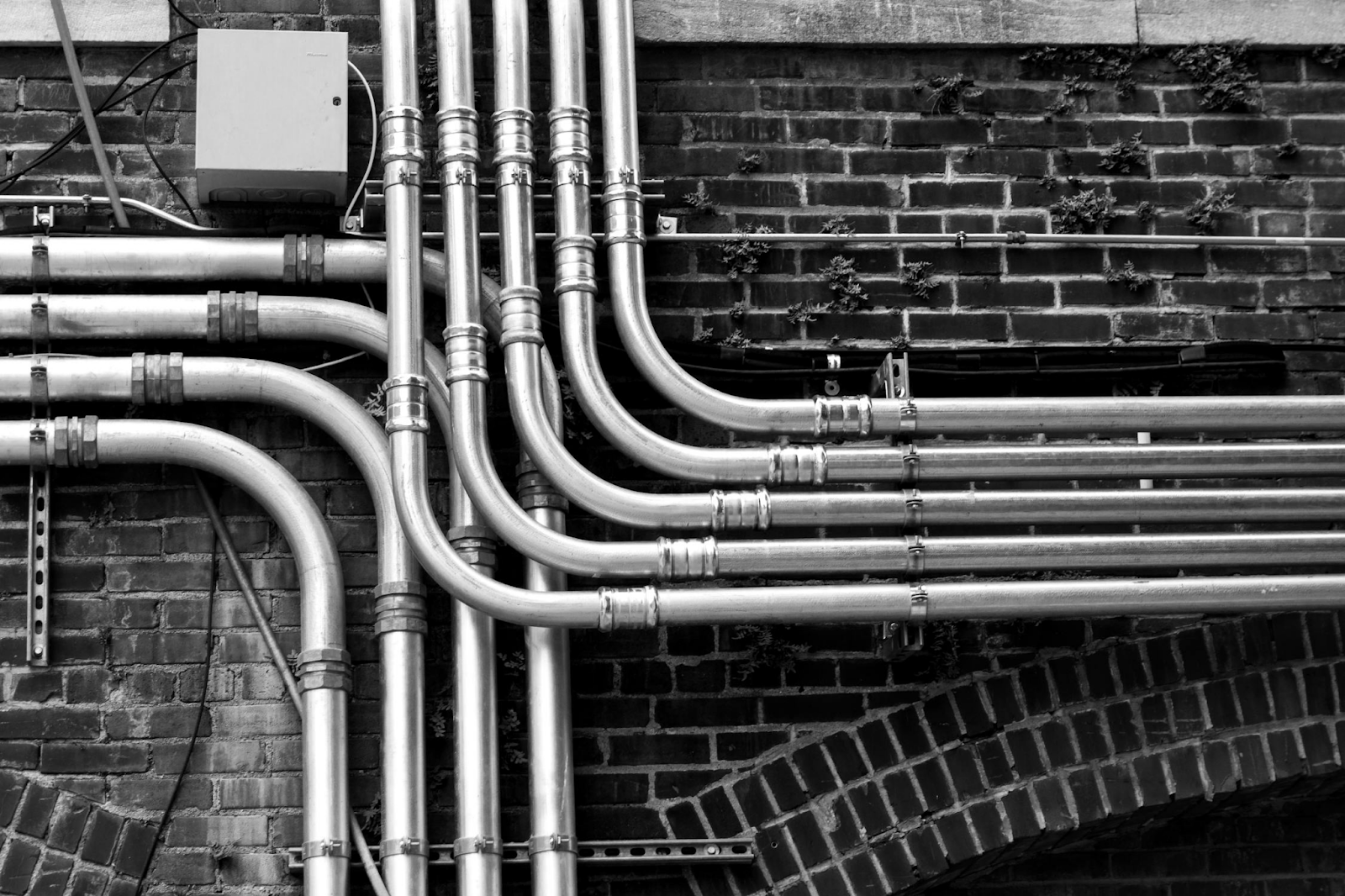

3. Electrical Metallic Tubing (EMT)
EMT, often called “thin-wall,” is a lightweight and versatile metal conduit. It’s primarily used for indoor wiring in residential and commercial settings due to its ease of installation. Its ability to bend and adapt to various layouts makes it a go-to choice for quick and straightforward setups.
- Commonly used in residential and commercial interiors.
- Lightweight, making it easy to handle and install.
- Suitable for environments with minimal physical stress.
EMT is ideal for low-risk applications where flexibility and affordability are key. Its lightweight design allows for efficient installation without compromising reliability. For projects needing a simple, cost-effective solution, EMT delivers dependable performance.
4. Flexible Metal Conduit (FMC)
FMC is a versatile conduit designed to bend and flex around obstacles, making it ideal for tight spaces or areas with vibration. Its flexibility allows it to navigate complex routes that rigid conduits cannot manage.
The metal construction of FMC provides a level of physical protection while still being easy to work with. It’s commonly used in applications like HVAC systems, lighting, and machinery. The ability to absorb vibration also makes FMC valuable for protecting connections in moving equipment.
FMC is often paired with LFMC for waterproofing, offering flexibility and environmental protection for various installations. Regular inspections ensure FMC remains intact and undamaged by bending or external forces.
5. Liquid-Tight Flexible Metal Conduit (LFMC)
LFMC is a flexible conduit with a waterproof coating, ideal for wet or outdoor environments. It combines the flexibility of FMC with a protective outer layer that resists moisture, making it suitable for harsh conditions.
- Commonly used in outdoor installations and areas exposed to moisture.
- Protects against water, oil, and other contaminants.
- Often used in HVAC systems and industrial equipment.
LFMC provides a reliable solution for protecting cables in challenging environments. Its waterproof coating and flexibility make it ideal for outdoor and industrial applications. With proper use, it ensures long-lasting durability and performance. We have a section to discuss more about the benefits of automated systems.
6. Polyvinyl Chloride (PVC) Conduit
PVC conduit is a lightweight, non-metallic option that provides excellent resistance to corrosion and moisture. It’s widely used in underground or wet environments, such as outdoor wiring and buried applications.
PVC is easy to cut and assemble, making it a popular choice for projects requiring custom configurations. It’s also non-conductive, adding an extra layer of safety for electrical installations. Regular inspections ensure joints remain sealed to prevent water ingress and maintain system integrity. Such technologies are also used in the solar industry to shape the future.
7. Rigid Non-Metallic Conduit (RNC)
RNC, typically made of PVC or similar plastics, offers lightweight and durable protection for electrical wiring. It’s commonly used in environments where metal conduits would corrode, such as underground or chemical-rich areas.
- Resistant to corrosion, making it ideal for wet or underground environments.
- Non-conductive, providing additional safety.
- Easy to install with simple cutting and joining methods.
RNC offers reliable protection in environments where metal conduits may corrode or fail. Its lightweight, non-conductive design makes it a cost-effective choice for various applications.
8. Electrical Non-Metallic Tubing (ENT)
ENT is a flexible, non-metallic tubing ideal for indoor electrical wiring. Its lightweight design makes it easy to install, especially in tight or hard-to-reach spaces. Commonly used in residential projects, it’s perfect for routing cables through walls and ceilings.
- Ideal for indoor wiring in low-stress environments.
- Flexible design simplifies routing around obstacles.
- Fire-resistant options available for added safety.
ENT is a practical, low-cost solution for basic electrical installations. Its flexibility allows for easy routing around obstacles, simplifying the installation process. This makes it an efficient choice for projects that prioritize affordability and ease of use.
Conclusion
Choosing the right conduit is key to protecting wiring and ensuring safety. From durable RMC to flexible ENT, each type has a specific purpose. The right choice depends on your project’s needs and environment.
Use this guide to identify the right conduit for your unique project. Good luck!
